Specification:JIC FEMALE 74° CONE SEAT SEAL ;
Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2;
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

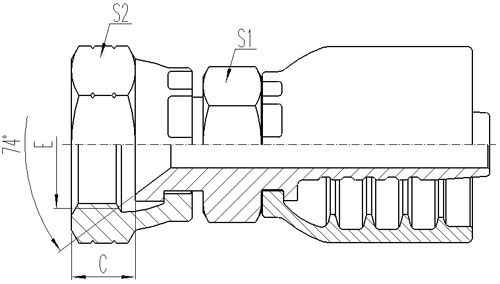

	HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S1	S2
26711-04-04	7/16"X20	6	04	9	15	15
26711D-05-05	1/2"X20	8	05	9.5	17	17
26711D-06-06	9/16"X18	10	06	10.5	19	19
26711D-08-08	3/4"X16	12	08	11	24	24
26711D-10-10	7/8"X14	16	10	13	27	27
26711D-12-12	1.1/16"X12	20	12	15	32	32
26711D-16-16	1.5/16"X12	25	16	16	41	41
26711D-16-20	1.5/16"X12	32	20	16	41	41
26711D-20-16	1.5/8"X12	25	16	17	50	50
26711D-20-20	1.5/8"X12	32	20	17	50	50
26711D-24-20	1.7/8"X12	32	20	20	55	55
26711D-24-24	1.7/8"X12	38	24	20	55	55
