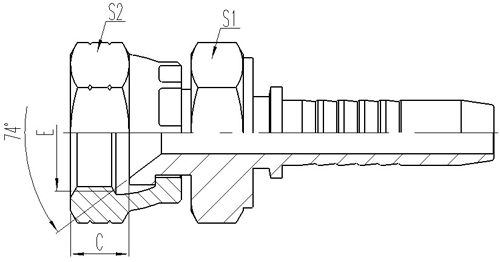

Specification:Jic FEMALE 74° CONE SEAT SEAL DOUBLE HEXAGON;
Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2. For example: change from A20211-14-04 to A20212-14-04;
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;
PART NO. | THREAD E | DN | DASH | C | S1 | S2 |
26711D-04-04 | 7/16"X20 | 6 | 04 | 9 | 14 | 14 |
26711D-05-04 | 1/2"X20 | 6 | 04 | 9.5 | 17 | 17 |
26711D-06-06 | 9/16"X18 | 10 | 06 | 10.5 | 19 | 19 |
26711D-08-06 | 3/4"X16 | 10 | 06 | 11 | 24 | 24 |
26711D-08-08 | 3/4"X16 | 12 | 08 | 11 | 24 | 24 |
26711D-08-10 | 3/4"X16 | 16 | 10 | 11 | 24 | 24 |
26711D-10-08 | 7/8"X14 | 12 | 08 | 14 | 27 | 27 |
26711D-12-12 | 1.1/16"X12 | 20 | 12 | 15 | 32 | 32 |
26711D-16-12 | 1.5/16"X12 | 20 | 12 | 16 | 41 | 41 |
26711D-16-16 | 1.5/16"X12 | 25 | 16 | 16 | 41 | 41 |
26711D-20-20 | 1.7/16"X12 | 32 | 20 | 17 | 50 | 50 |
JIC FEMALE CONE SEAT SEAL DOUBLE HEXAGON has been presented above, want more similar products, please click JIC FEMALE,American fittings,American hose fitting.
Our JIC FEMALE CONE SEAT SEAL DOUBLE HEXAGON is good in quality and competitive in price. We manufacture JIC FEMALE CONE SEAT SEAL DOUBLE HEXAGON and supply OEM, ODM service according to your requirement.
If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
