Model No.: 87613-XX-XX

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe,America, Middle East

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements

Specification:SAE FLANGE 6000PSI;
Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2;
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

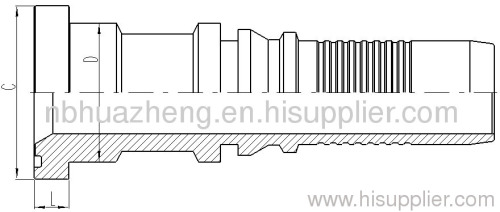

PART NO.	FLANGE SIZE	DN	DASH	C	D	L
87613-12-12	3/4"	20	12	41.3	31.7	8.9
87613-16-12	1"	20	12	47.6	38	9.6
87613-16-16	1"	25	16	47.6	38	9.6
87613-20-16	1.1/4"	25	16	54	43.6	10.4
87613-20-20	1.1/4"	32	20	54	43.6	10.4
87613-24-20	1.1/2"	32	20	63.5	50.8	12.7
87613-24-24	1.1/2"	38	24	63.5	50.8	12.7
87613-32-24	2"	38	24	79.4	66.5	12.7
87613-32-32	2"	51	32	79.4	66.5	12.7
