Product Detail

Model No.: 20641-XX-XX

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe,America, Middle East

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements

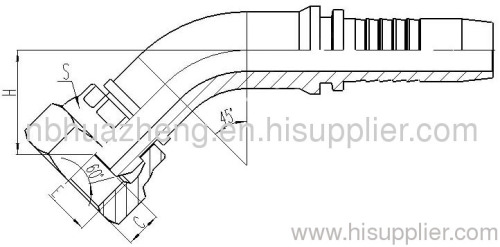

Specification:45° Metric Female 60°Cone Seal

Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2.
Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Size: from 1/8" to 3";

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S	H
20641-14-04	M14X1.5	6	04	5.5	19	20.6
20641-16-05	M16X1.5	8	05	5.5	22	21.8
20641-18-06	M18X1.5	10	06	5.6	24	23.2
20641-22-08	M22X1.5	12	08	6	27	26.8
20641-27-10	M27X1.5	16	10	6	32	29.2
20641-30-12	M30X1.5	20	12	6	36	33.5

    45° Metric Female 60°Cone Seal has been presented above, want more similar products, please click 45°female metric fitting,pipe fitting,pipe fittings.
    Our 45° Metric Female 60°Cone Seal is good in quality and competitive in price. We manufacture 45° Metric Female 60°Cone Seal and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
