BSP MEAL O-RING SEAL 12211-XX-XX manufacturer from China Ningbo Yinzhou Huazheng Hydraulic Equipments Manufacture Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 12211-XX-XX

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe, America, Middle Eas...

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements

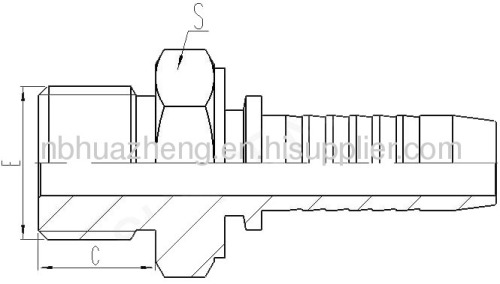

BSP MEAL O-RING SEAL
Specification:

Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2.
Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Size: from 1/8" to 3";

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

PART NO.	THREAD E	DN	DASH	C	S
12211-04-04	G1/4"X19	6	04	11	19
12211-04-06	G1/4"X19	10	06	11	19
12211-06-06	G3/8"X19	10	06	12	22
12211-08-06	G1/2"X14	10	06	14	27
12211-08-08	G1/2"X14	12	08	14	27
12211-10-10	G5/8"X14	16	10	16	30
12211-12-12	G3/4"X14	20	12	16	32
12211-16-16	G1"X11	25	16	18.5	41

    BSP MEAL O-RING SEAL has been presented above, want more similar products, please click BSP MEAL O-RING SEAL,BSP MEAL O-RING SEALs,china BSP MEAL O-RING SEAL.
    Our BSP MEAL O-RING SEAL is good in quality and competitive in price. We manufacture BSP MEAL O-RING SEAL and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
