Retaining Nut NS-XX-XX manufacturer from China Ningbo Yinzhou Huazheng Hydraulic Equipments Manufacture Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: NS-XX-XX

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe,America, Middle East

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements

Specification:Retaining Nut;
Instruction: If use with spiral hose, The sixth digit of product code must

change from 1 to 2.
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of

machinery, oilfield, mine, building, transportation, food and other industries;

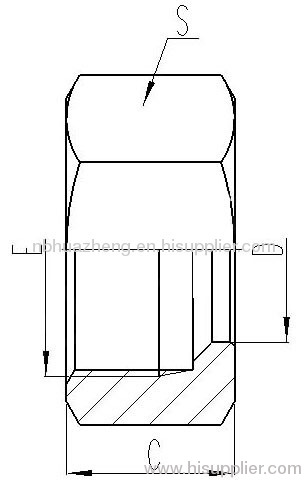

		D	DIMENSIONS
PART NO	THREAD E	TUBE O.D.	C	S
NS-14	M14X1.5	6	16.5	17
NS-16	M16X1.5	8	16.5	19
NS-18	M18X1.5	10	17.5	22
NS-20	M20X1.5	12	17.5	24
NS-22	M22X1.5	14	20.5	27
NS-24	M24X1.5	16	20.5	30
NS-30	M30X2	20	24	36
NS-36	M36X2	25	27	46
NS-42	M42X2	30	29	50
NS-52	M52X2	38	32.5	60

    Retaining Nut has been presented above, want more similar products, please click heavy nut,Standpipe Fitting,Standpipe Fittings.
    Our Retaining Nut is good in quality and competitive in price. We manufacture Retaining Nut and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
