BSP Female Cone Seal Double Hexagon 22611-XX-XXD manufacturer from China Ningbo Yinzhou Huazheng Hydraulic Equipments Manufacture Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 22611-XX-XXD

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe, America, Middle Eas...

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements

Specification:BSP Female 60°Cone Seal Double Hexagon;

Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2.
Material: carbon steel, stainless steel, brass;

Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;

Size: from 1/8" to 3";

Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

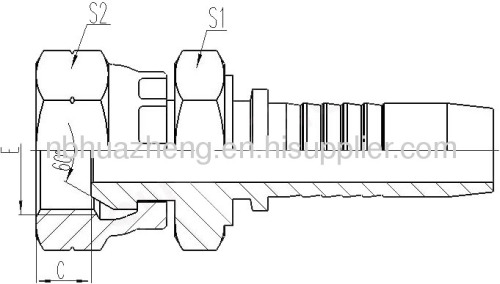

		HOSE BORE		DIMENSIONS
PART NO.	THREAD E	DN	DASH	C	S1	S2
22611D-04-04	G1/4"X19	6	04	5.5	19	19
22611D-06-06	G3/8"X19	10	06	6.3	22	22
22611D-08-08	G1/2"X14	12	08	7.5	27	27
22611D-10-08	G5/8"X14	12	08	9.5	30	30
22611D-12-08	G3/4"X14	12	08	10.9	32	32
22611D-12-12	G3/4"X14	20	12	10.9	32	32
22611D-16-16	G1"X11	25	16	11.7	41	41
22611D-20-20	G1.1/2"X11	32	20	11	50	50

    BSP Female Cone Seal Double Hexagon has been presented above, want more similar products, please click hex bsp fitting,female BSP fitting,BSP Female fitting.
    Our BSP Female Cone Seal Double Hexagon is good in quality and competitive in price. We manufacture BSP Female Cone Seal Double Hexagon and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
