O-ring Metric Female 24° Cone Seal- L.T.
Payment Terms: |
T/T,L/C |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
20411-XX-XX
Packing:
Carton & Pallet
Function::
Convey Fluid
Export Area::
Europe,America, Middle East
Means of Transport:
Ocean
Delivery Date:
According to order specifie...
Certificate::
ISO 9001:2000
our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements.

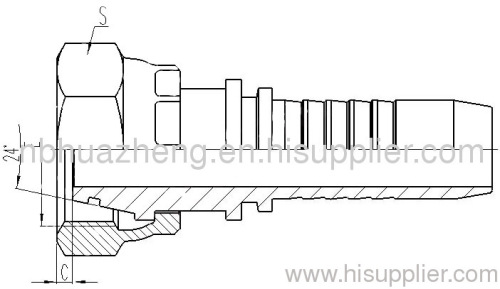

Specification:O-ring Metric Fwmalw 24° Cone Seal L.T.
Instruction: If use with spiral hose, The sixth digit of product code must change from 1 to 2;
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;
Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;
| | HOSE BORE | | DIMENSIONS |
PART NO. | THREAD E | DN | DASH | TUBE O.D. | C | S | |
20411-12-04 | M12X1.5 | 6 | 04 | 6 | 1.5 | 17 | |
20411-14-04 | M14X1.5 | 6 | 04 | 8 | 2 | 19 | |
20411-16-05 | M16X1.5 | 8 | 05 | 10 | 2 | 22 | |
20411-18-06 | M18X1.5 | 10 | 06 | 12 | 2.5 | 24 | |
20411-22-08 | M22X1.5 | 12 | 08 | 15 | 2.5 | 17 | |
20411-26-10 | M26X1.5 | 16 | 10 | 18 | 2.5 | 32 | |
20411-27-12 | M27X1.5 | 20 | 12 | 18 | 2.5 | 32 | |
20411-30-12 | M30X2 | 20 | 12 | 22 | 4 | 36 | |
20411-36-16 | M36X1.5 | 25 | 16 | 28 | 4 | 41 | |
O-ring Metric Fwmalw 24° Cone Seal L.T. has been presented above, want more similar products, please click 24 cone fitting,O-ring Seal fitting,Metric Hose Fitting.
Our O-ring Metric Fwmalw 24° Cone Seal L.T. is good in quality and competitive in price. We manufacture O-ring Metric Fwmalw 24° Cone Seal L.T. and supply OEM, ODM service according to your requirement.
If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
