ORFS FEMALE FLAT SEAL 24211-XX-XX manufacturer from China Ningbo Yinzhou Huazheng Hydraulic Equipments Manufacture Co.,Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 24211-XX-XX

Packing: Carton & Pallet

Function:: Convey Fluid

Export Area:: Europe,America, Middle East

Means of Transport: Ocean

Delivery Date: According to order specifie...

Certificate:: ISO 9001:2000

our products conform to international standards, Such as SAE, DIN, JIS and BS etc.. However, We could also customize according to your requirements.

Specification:orfs female flat seal;
Instruction:
1\The parameter of o-ring is ring inside diameter and ring width.
2\If you are interested to order the DIN 24 cone adapter with cutting ring and nut, It is necessary to insert suffix "RN" after our part No.. For example A1C-30RN.
3\If you interested to order JIC 37 cone adapter with nut and sleeve, It is necessary to insert suffix "RN" after our part No.. For example A1J-RN. But the nut ANB200 and sleeve ANB500 is suitable for metric tube, The nut ANB200 and sleeve ANB300 is suitable for inch tube.
4\If you are interested to order the bulkhead adapter with lock nut, It is necessary to insert suffix "LN" after our part No., For example A6B-12LN.Material: carbon steel, stainless steel, brass;Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, Nickel;Size: from 1/8" to 3";
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries;

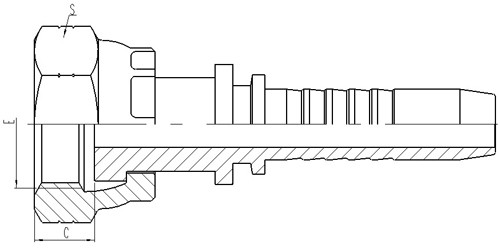

PART NO.	THREAD E	DN	DASH	C	S
24211-04-04	9/16"X18	6	04	8.5	19
24211-06-06	11/16"X16	10	06	10	22
24211-08-08	13/16"X16	12	08	11	27
24211-10-10	1"X14	16	10	13	30
24211-12-12	1.3/16"X12	20	12	15	36
24211-20-20	1.11/16"X12	32	20	15	50

    ORFS FEMALE FLAT SEAL has been presented above, want more similar products, please click ORFS FEMALE FLAT SEAL,sae hose fittings,deg brass barbed hose fitting.
    Our ORFS FEMALE FLAT SEAL is good in quality and competitive in price. We manufacture ORFS FEMALE FLAT SEAL and supply OEM, ODM service according to your requirement.
    If you want more detailed information of this product or related problems, please contact with us, we will reply as soon as possible (general in 24 hours).
